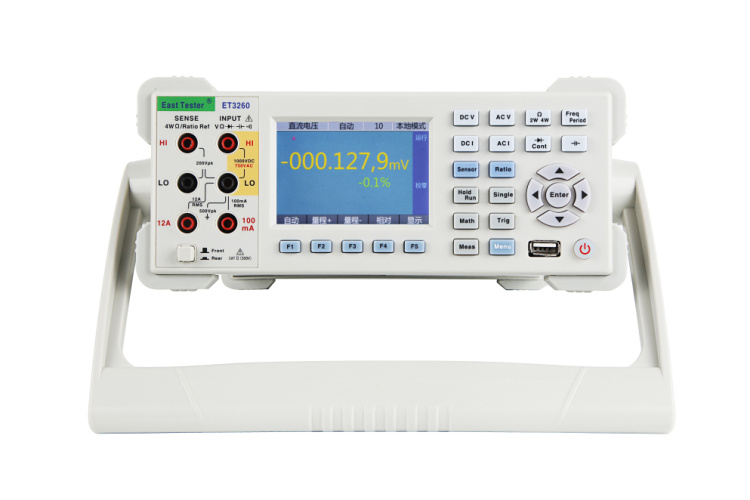

ET3260 6.5 Digit Multimeter
| Function | Digit | Setting | Integral time | Measurement/second [1] |
|
DC voltage DC current Resistance |
6 1/2 | 100PLC | 2s | 0.5 |
| 6 1/2 | 10PLC | 200ms | 5 | |
| 6 1/2 | 2PLC | 40ms | 25 | |
| 5 1/2 | 1PLC | 20ms | 50 | |
| 5 1/2 | 0.2PLC | 4ms | 250 | |
| 4 1/2 | 0.1 | 2ms | 500 | |
| 4 1/2 | 0.02 | 0.4ms | 2500 | |
|
AC voltage AC current |
6 1/2 | 3Hz | 0.14 | |
| 6 1/2 | 20Hz | 1 | ||
| 6 1/2 | 200Hz | 1.6 | ||
| 6 1/2 | 200Hz | 6 | ||
| Frequency and period | 6 1/2 | 1s | 1 | |
| 5 1/2 | 100ms | 9.8 | ||
| 4 1/2 | 10ms | 80 | ||
| The typical measurement rate during AZ off, AZ integral time should not be more than signal integral time. | ||||
